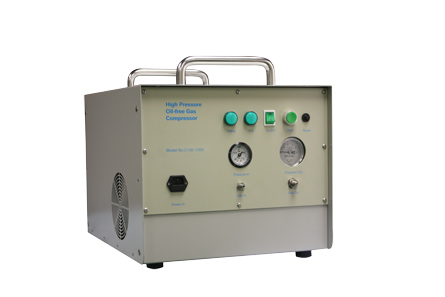

Ultra High Pressure Oil-Free Compressor (3000PSI)

Ultra High Pressure Oil-free compressor is designed for filling non-hazardous gases such as oxygen, nitrogen, air, argon etc. into cylinder for specific applications such as gas storage backup and gas replenishment through cylinder re-filling.

When coupled the compressor with PSA oxygen concentrator, an oxygen fill system is formed. The system can be used for EMS oxygen support for disaster rescue and health care support for undergound or highland area with low oxygen concentration.

Features :

  1. Absolute dry, clean and Oil-free.
  2. Ultra High Compression Ratio. Service pressure is up to 210 Bar(3000 psi/21MPa)
  3. Fast Filling.
  4. Small and light weight, easy and safe to operate.
  5. Simple, reliable and easy maintenance.
  6. Energy Saving: Low power consumption.
  7. Cost-Effective.

Compressor Specification :

Model No. C210-500
Electrical Requirment 230V-AC, 50Hz or 115V-AC, 60Hz
Power Consumption 500W average
Inlet Pressure 6-20PSI (0.04-0.14MPa)
Max. Discharge Pressure 3000PSI (20.7MPa)
Flow Rate 5-8LPM
Machine Dimensions 42cm W x 52cm D x 37cm H
Net Weight 46kg
